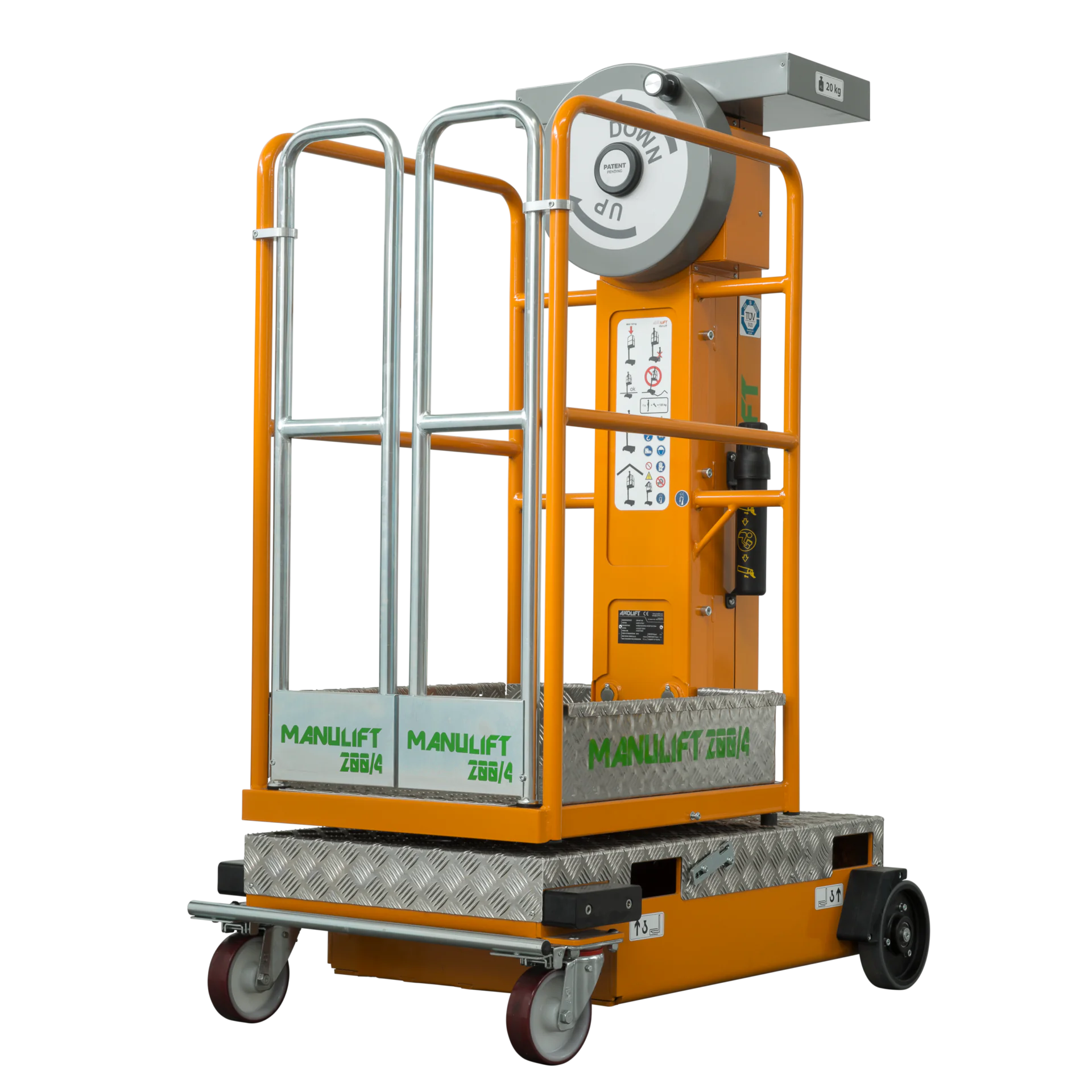

AXOLIFT MANULIFT 200/4

Technical specifications MANULIFT 200/4 low level access manual platform

AXOLIFT MANULIFT 200/4 is a low level access fully mechanical platform, designed to offer a solution to the danger of stairs. A platform created to be adaptable to different working environments, simply rotation of the handle and choose the height platform working area.

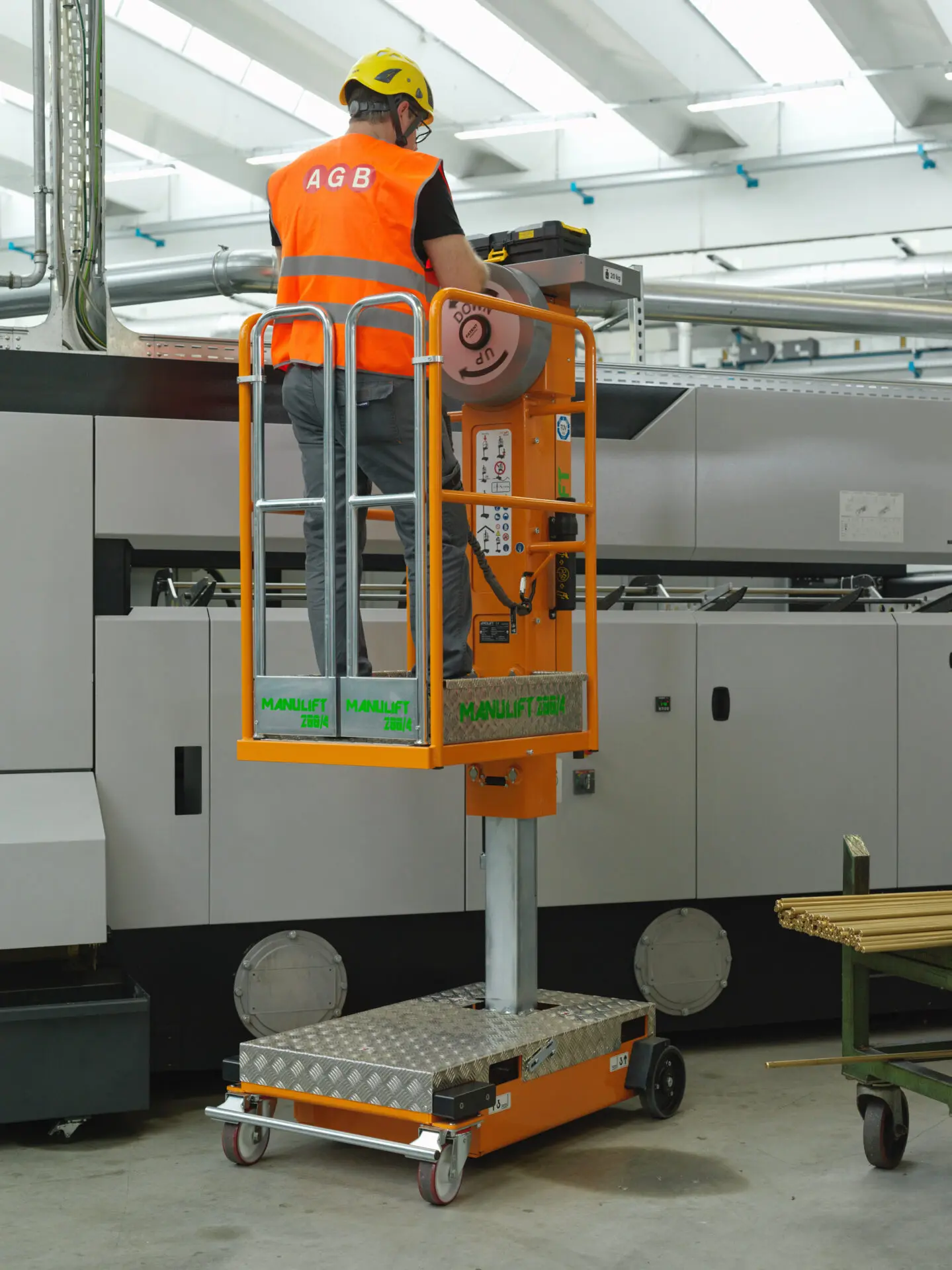

Manulift 200/4 Low Level Access Platform

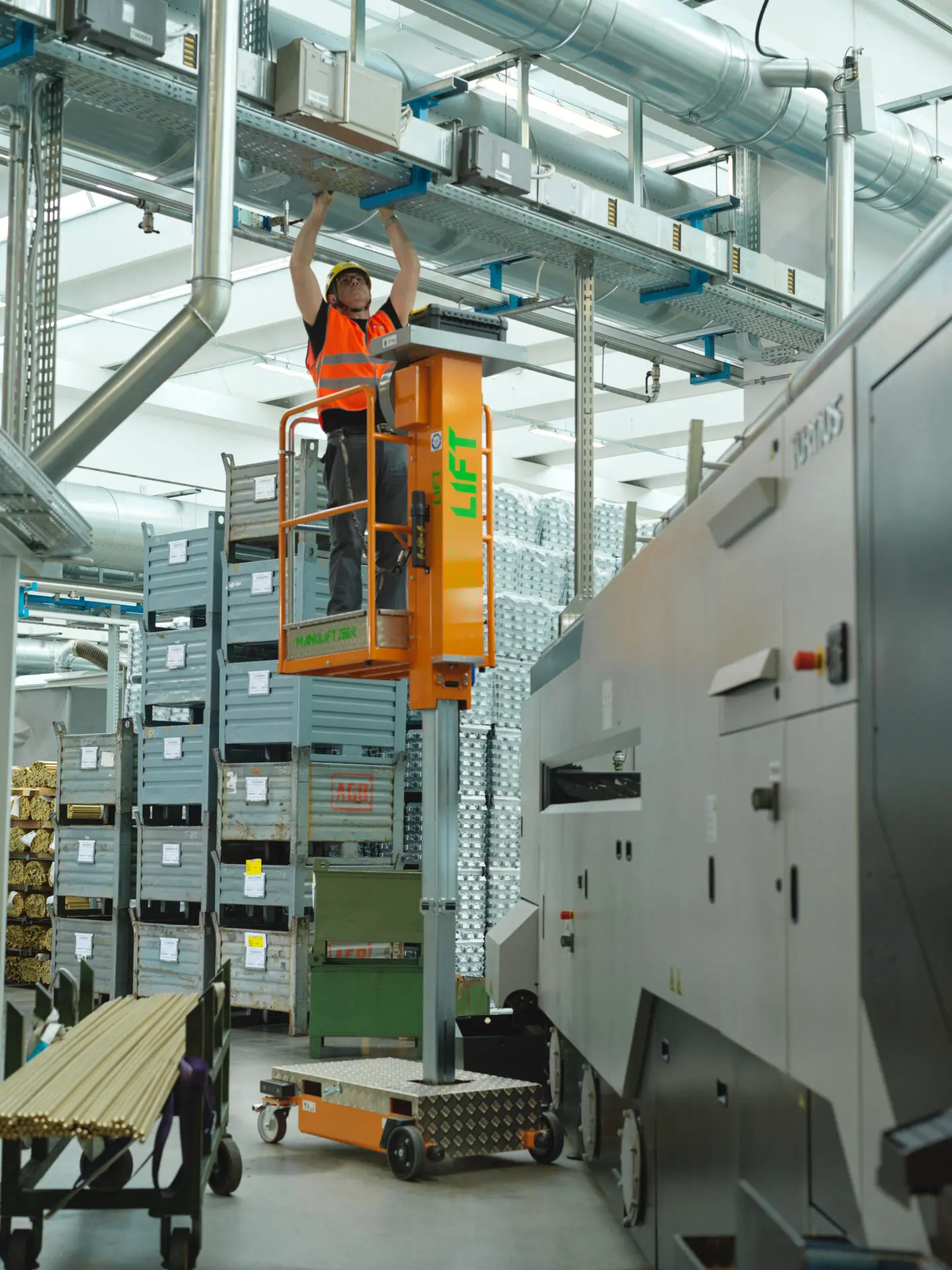

Axolift Manulift 200/4 Low level Access Platform

FEATURES

  • Ease of use and movement

    With MANULIFT 200/4 it is no longer necessary to assemble and disassemble, for example, a tower scaffold. You just have to position the platform, step on it and turn the handle to choose the height that best suits your job

  • Reduced weight and size

    Excellent handling, space-saving, even fits through doors. Equipped with a four-wheel chassis and a unique brake bar

  • Productivity

    Short set-up times compared to traditional solutions

  • Multiple uses and applications

    Indispensable for many jobs such as cleaning, painting, maintenance of workplaces and/or machinery, shop fitting, etc.

  • Without maintenance

    Without power and battery, maintenance is virtually non-existent

  • Safe

    The operator is completely protected and safe from the base.

  • Ecological

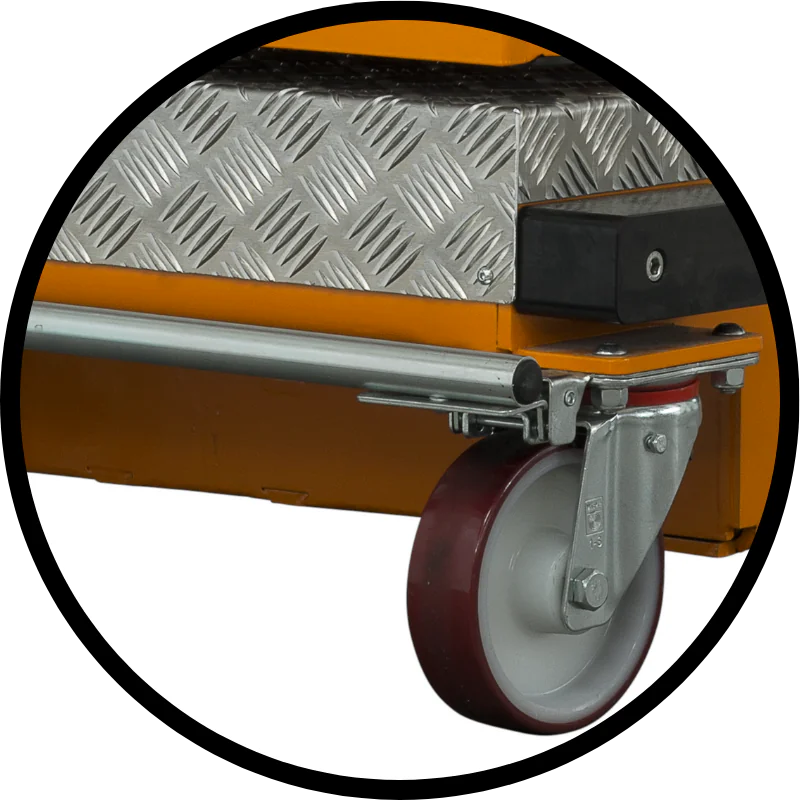

Castor wheels

With unidirectional system, the brake pedal is always easy to reach and releases comfortably. Image Hover Awesome Tools

Gates

Automatic saloon-door style entry gates.

Gas spring

Maintenance free top quality cylinders, guaranteed for 100.000 cycles which is the equivalent of 75 cycles per day for 6 years.

Knob

The safety pin of the knob is made of C45 steel with a nitrided surface, while the engagement disc is made of HARDOX 450 steel.

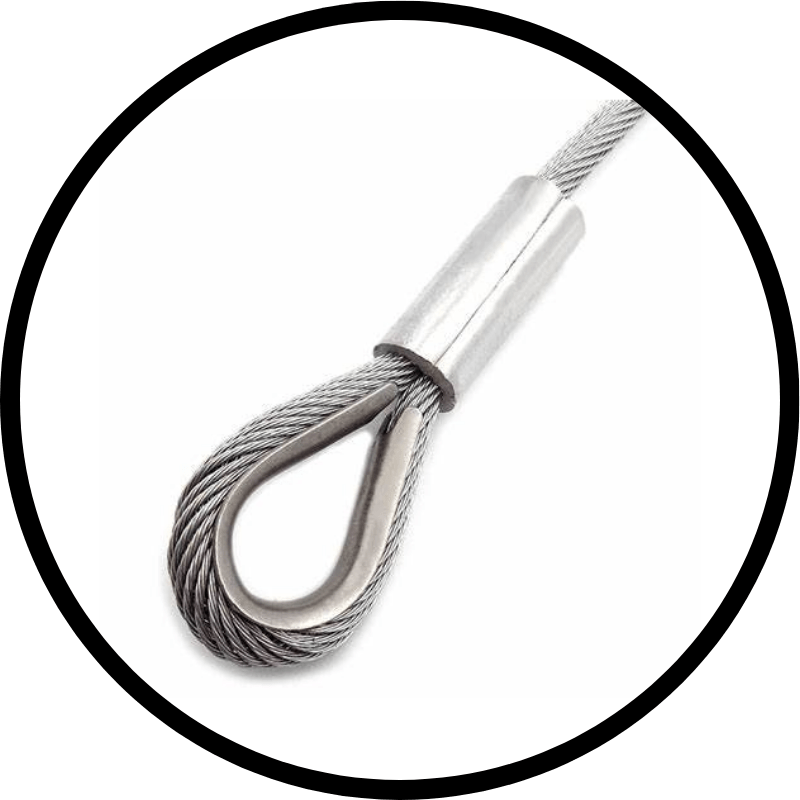

Safety lanyard

In case the main cable breaks there is always a back up cable to stop the uncontrolled movement.

Gearbox

AXOLIFT uses a fully enclosed and greased gear. A maintenance free solution.
  • TECHNICAL SPECS:
  • Max Working Height: 4.00 m
  • Max Platform Height: 2.00 m
  • Work Platform: 740 mm x 645 mm
  • Overall Width: 735 mm
  • Overall Length: 1265 mm
  • Stowed Height: 1670 mm
  • Platform Capacity SWL: 135 kg. (1 person + tools)
  • Allowable Cant: 0°- Internal Use
  • Max. Wind Speed: 0km/h- Internal Use
  • Max. Force To Be Exterted On The Handle: -5 daN
  • Weight: 273 kg

SUPPORTS

MANULIFT 200/4 Flyer (english version)

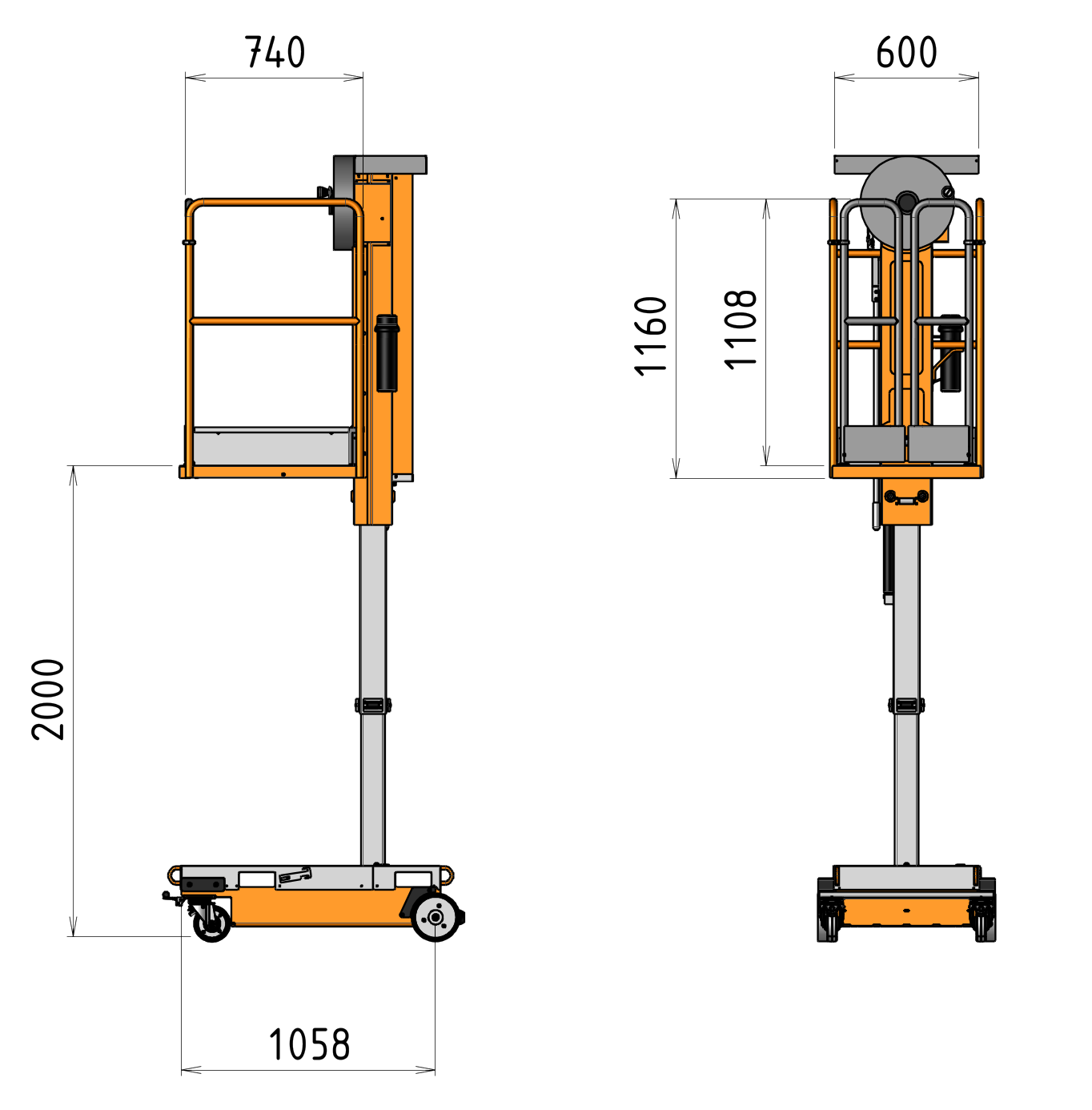

Manulift 200/4 Tech spec

SAFETY
Your safety is our priority. The AXOLIFT single-seat vertical platforms are the right solution for worker safety based on the new standards for height operations up to 5 meters.

ECO-FRIENDLY
All AXOLIFT products are zero emissions suitable for indoor use.

APPLICATIONS
Ordinary and extraordinary maintenance in work environments such as factories, workshops, laboratories, offices and shops. General renewal operations such as cleaning, painting, setting up large rooms.

INTERNAL PRODUCTIONS
The AXOLIFT brand platforms are manufactured internally at the production site of Gromet Srl – owner of the brand – located in Italy.
