AXOLIFT MANULIFT 200/4

Technical specifications of MANULIFT 200/4 use

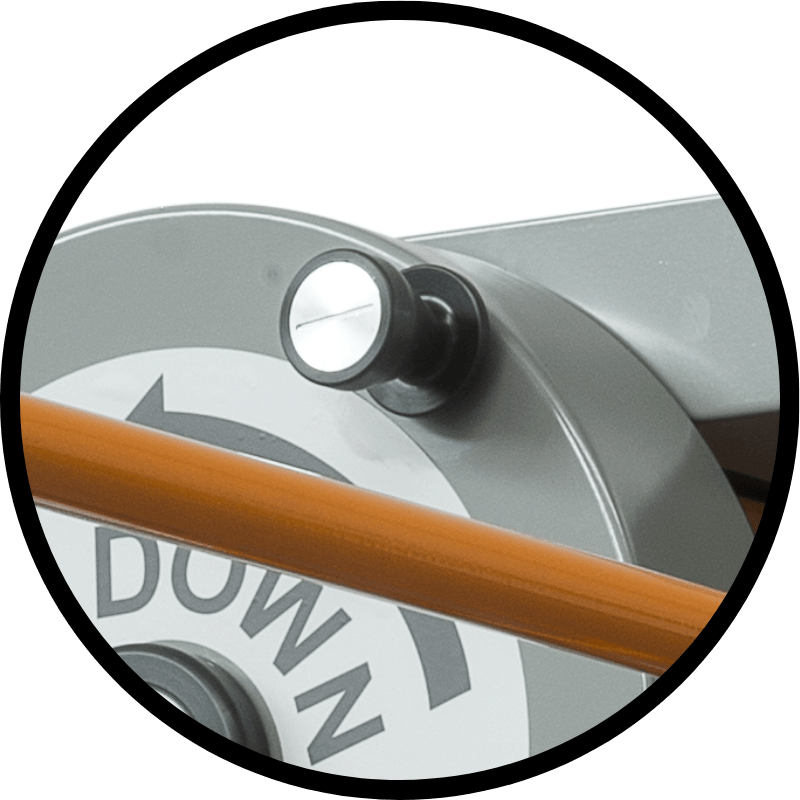

AXOLIFT MANULIFT 200/4 is a low level access fully mechanical platform, designed to offer a solution to the danger of stairs. A platform created to be adaptable to different working environments, simply rotation of the handle and choose the height platform working area.

FEATURES

  • Ease of use and movement

    With MANULIFT 200/4 it is no longer necessary to assemble and disassemble, for example, a tower scaffold. You just have to position the platform, step on it and turn the handle to choose the height that best suits your job

  • Reduced weight and size

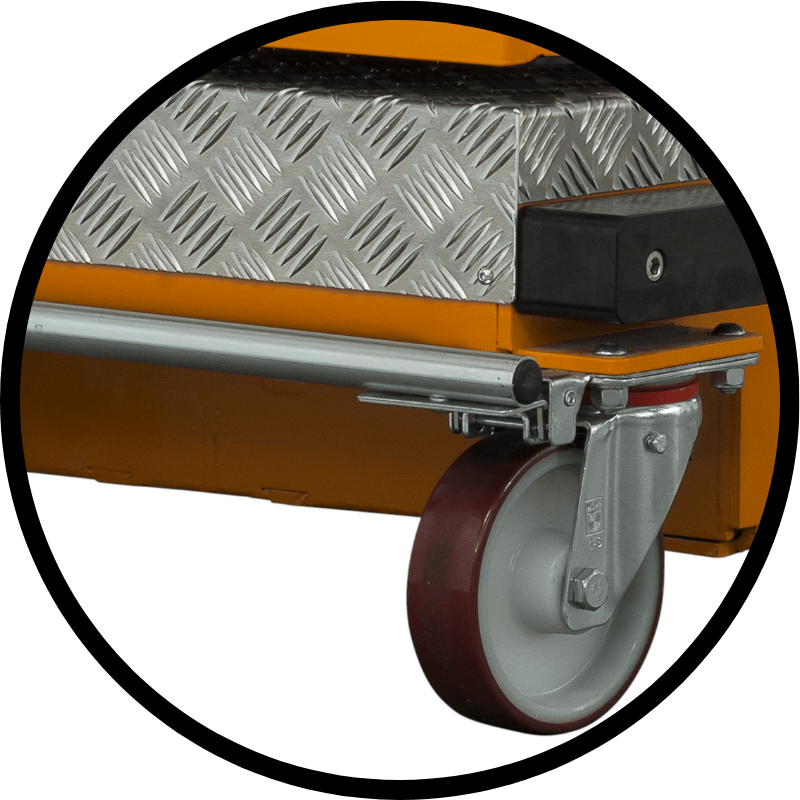

    Excellent handling, space-saving, even fits through doors. Equipped with a four-wheel chassis and a unique brake bar

  • Productivity

    Short set-up times compared to traditional solutions

  • Multiple uses and applications

    Indispensable for many jobs such as cleaning, painting, maintenance of workplaces and/or machinery, shop fitting, etc.

  • Without maintenance

    Without power and battery, maintenance is virtually non-existent

  • Safe

    he operator is completely protected and safe from the base.

  • Ecological

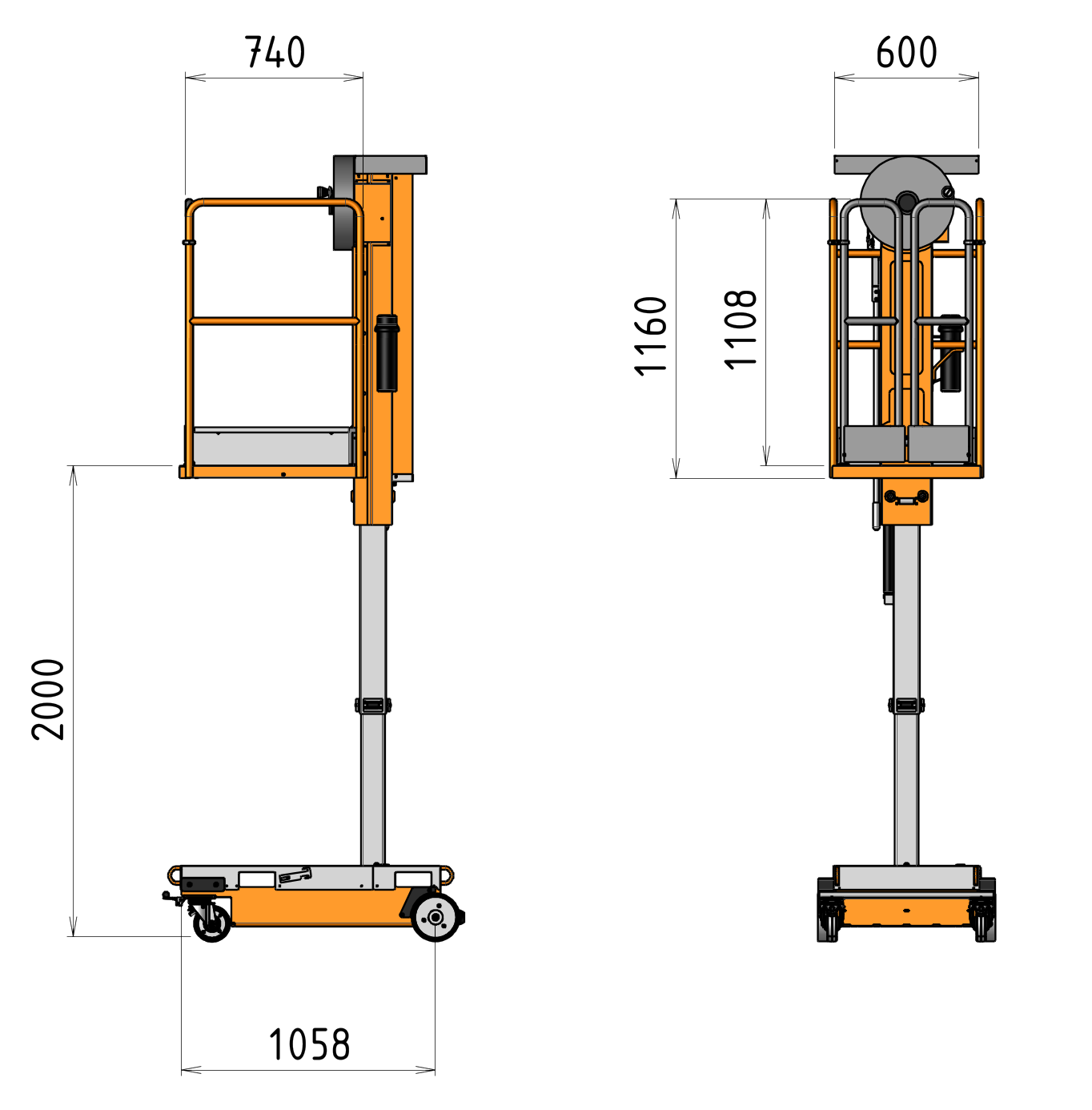

  • TECHNICAL SPECS:
  • Max Working Height: 4.00 m
  • Max Platform Height: 2.00 m
  • Work Platform: 740 mm x 645 mm
  • Overall Width: 735 mm
  • Overall Length: 1265 mm
  • Stowed Height: 1670 mm
  • Platform Capacity SWL: 125 kg. (1 person + tools)
  • Allowable Cant: 0°- Internal Use
  • Max. Wind Speed: 0km/h- Internal Use
  • Max. Force To Be Exterted On The Handle: -5 daN
  • Weight: 273 kg

SUPPORTS

MANULIFT 200/4 Flyer (english version)

SAFETY
Your safety is our priority. The AXOLIFT single-seat vertical platforms are the right solution for the safety of workers according to the new standards for operations in heights up to 5 meters.

ECO-FRIENDLY
Whether you choose a column lift with the simple mechanical solution or with the battery, all AXOLIFT products are zero emissions suitable for use both indoors and outdoors.

APPLICATIONS
Ordinary and extraordinary maintenance in the workplace such as factories, workshops, laboratories, offices and shops. General renovation operations such as cleaning, painting, setting up large rooms.

INTERNAL PRODUCTION
The AXOLIFT brand platforms are manufactured internally at the production site of Gromet Srl – owner of the brand – located in Italy.
