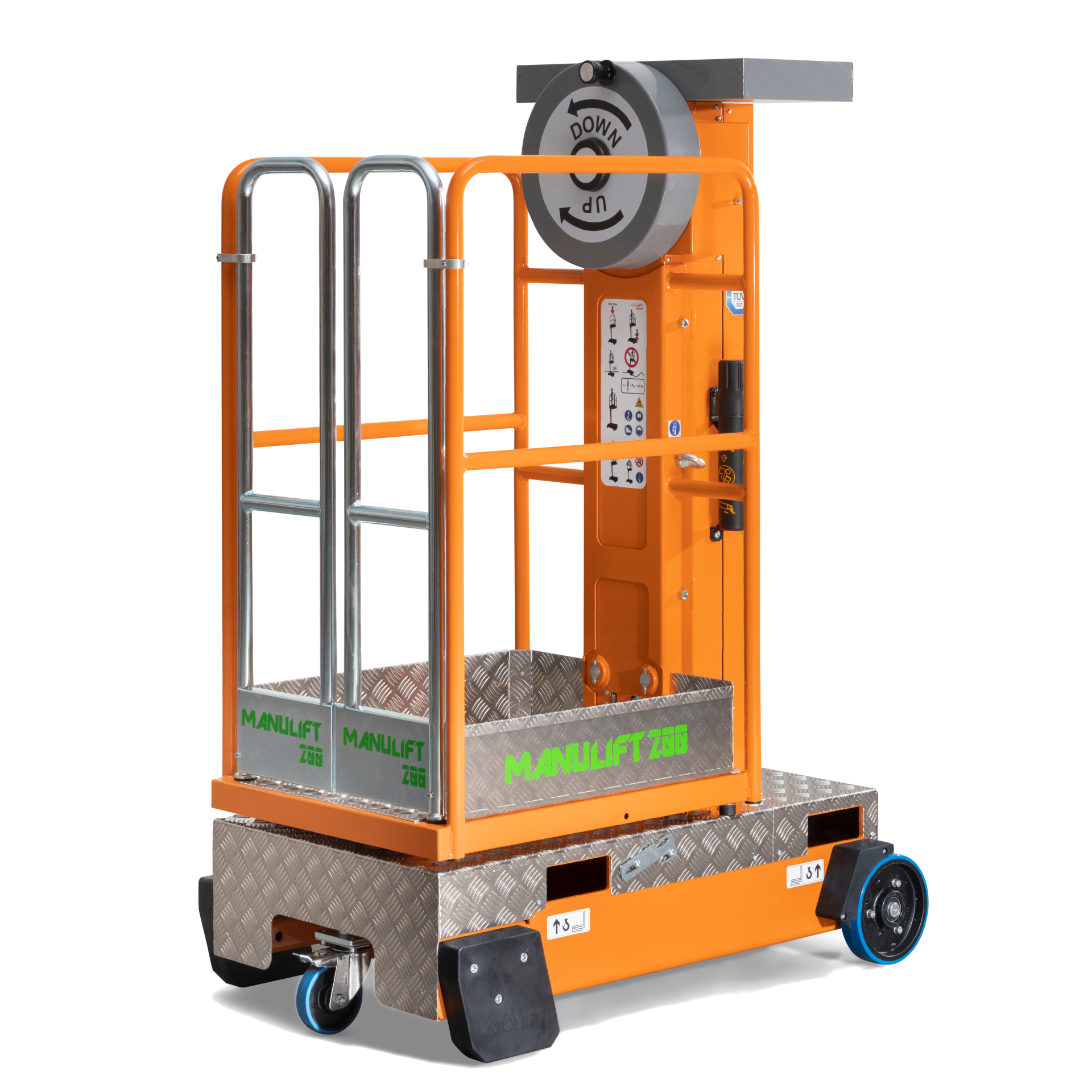

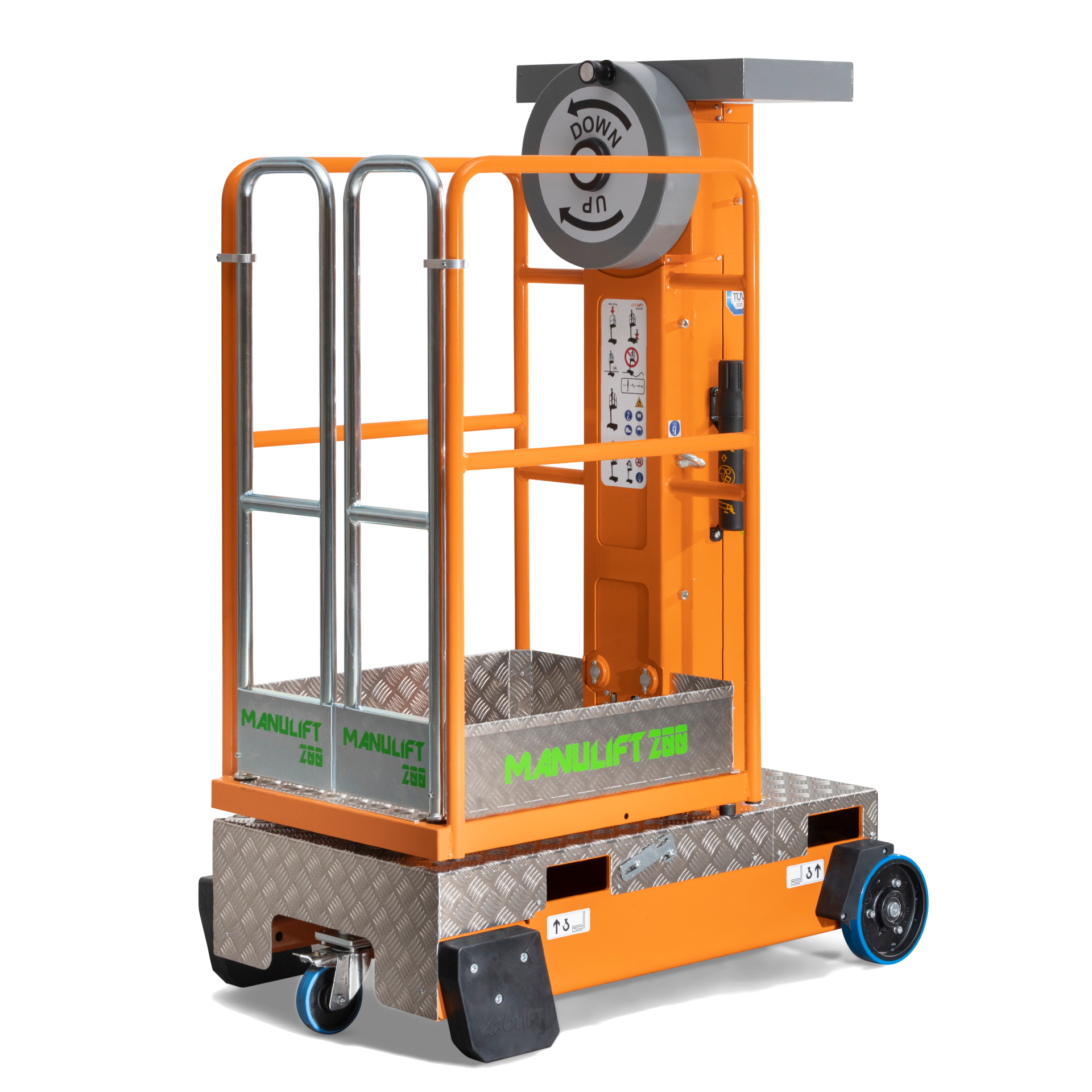

AXOLIFT MANULIFT 200
Technical specifications AXOLIFT Manulift 200 low level access platform use

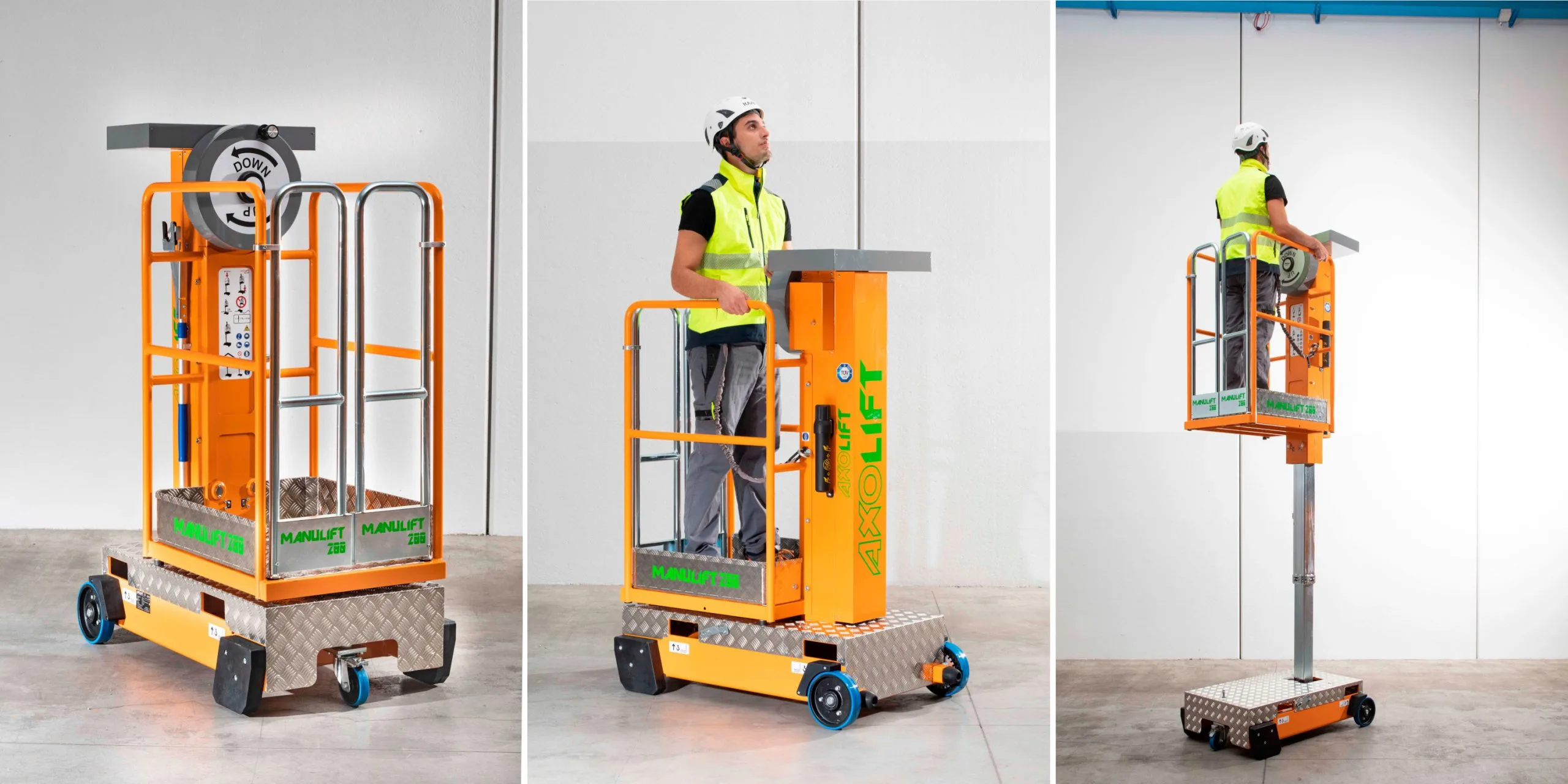

AXOLIFT MANULIFT 200 is a low level access full mechanical platform, designed to offer a solution to the danger of stairs. A platform created to be adaptable to different working environments, simply rotation of the handle and choose the height platform working area.
This specific platform is a mechanical, versatile, robust an simple to use vertical mast platform, ideal for many applications-from construction to industries.
- Lightweight
- Completely manual
- Automatic stabilization
- Passes easily through standard doors
- Patented lifting mechanism*without power source
- Forkliftable
FEATURES
- Ease of use and movement

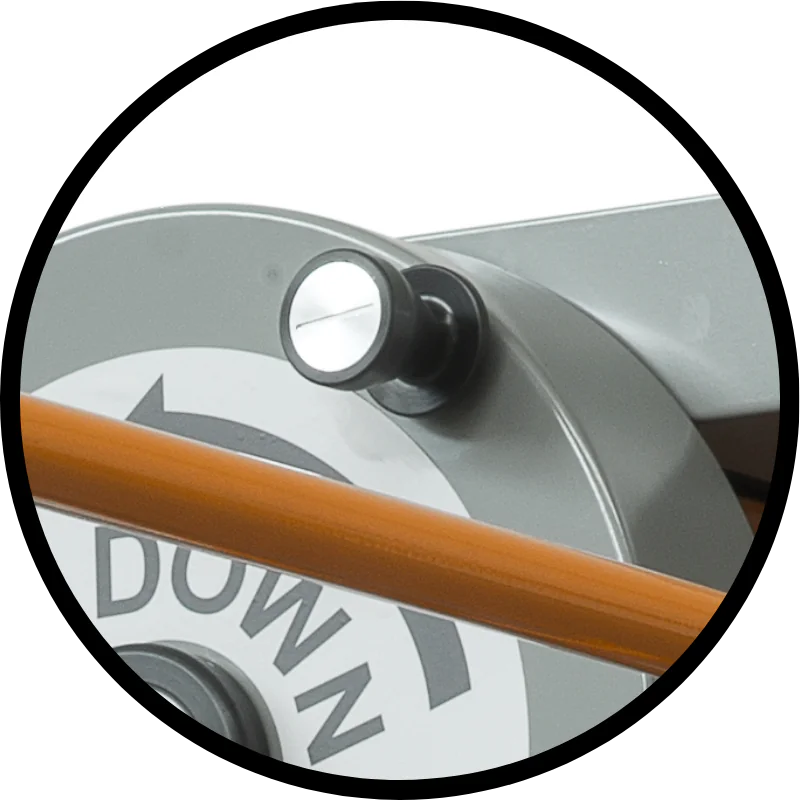

With MANULIFT 200 it is no longer necessary to assemble and disassemble, for example, a tower scaffold. You just have to position the platform, step on it and turn the handle to choose the height that best suits your job
- Reduced weight and dimensions
Superb handling, not bulky, even goes through doors
- Productivity
Short set-up times compared to traditional solutions
- Multiple uses and applications
Essential for many jobs such as cleaning, painting, maintenance work of workplaces and / or machinery, shop fitting, etc.
- Maintenance-free
Without power and battery, maintenance is virtually non-existent
- Safe

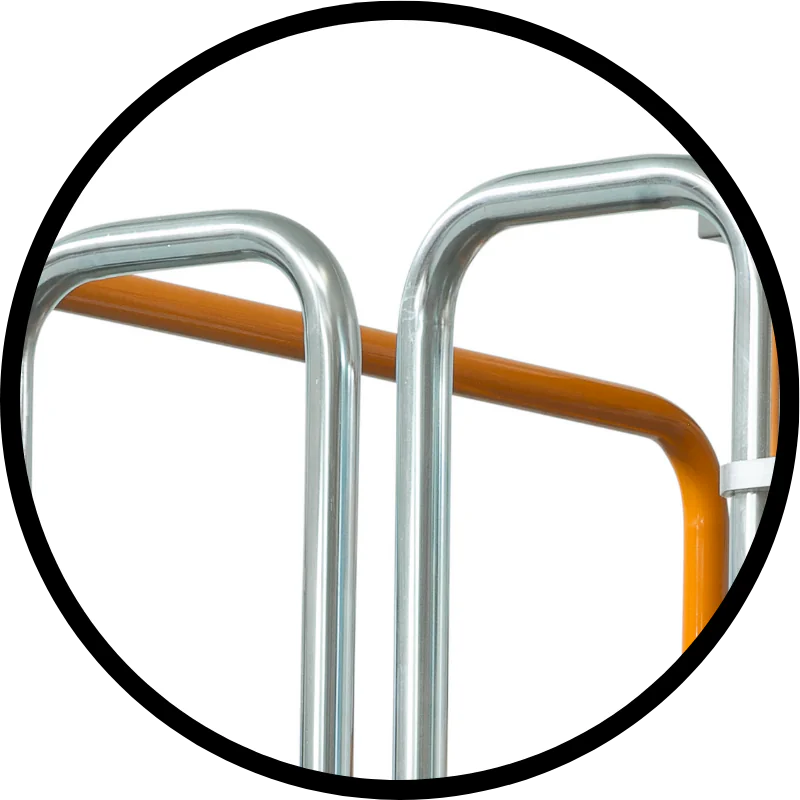

The operator is fully protected and safe from the base.
- Eco-friendly

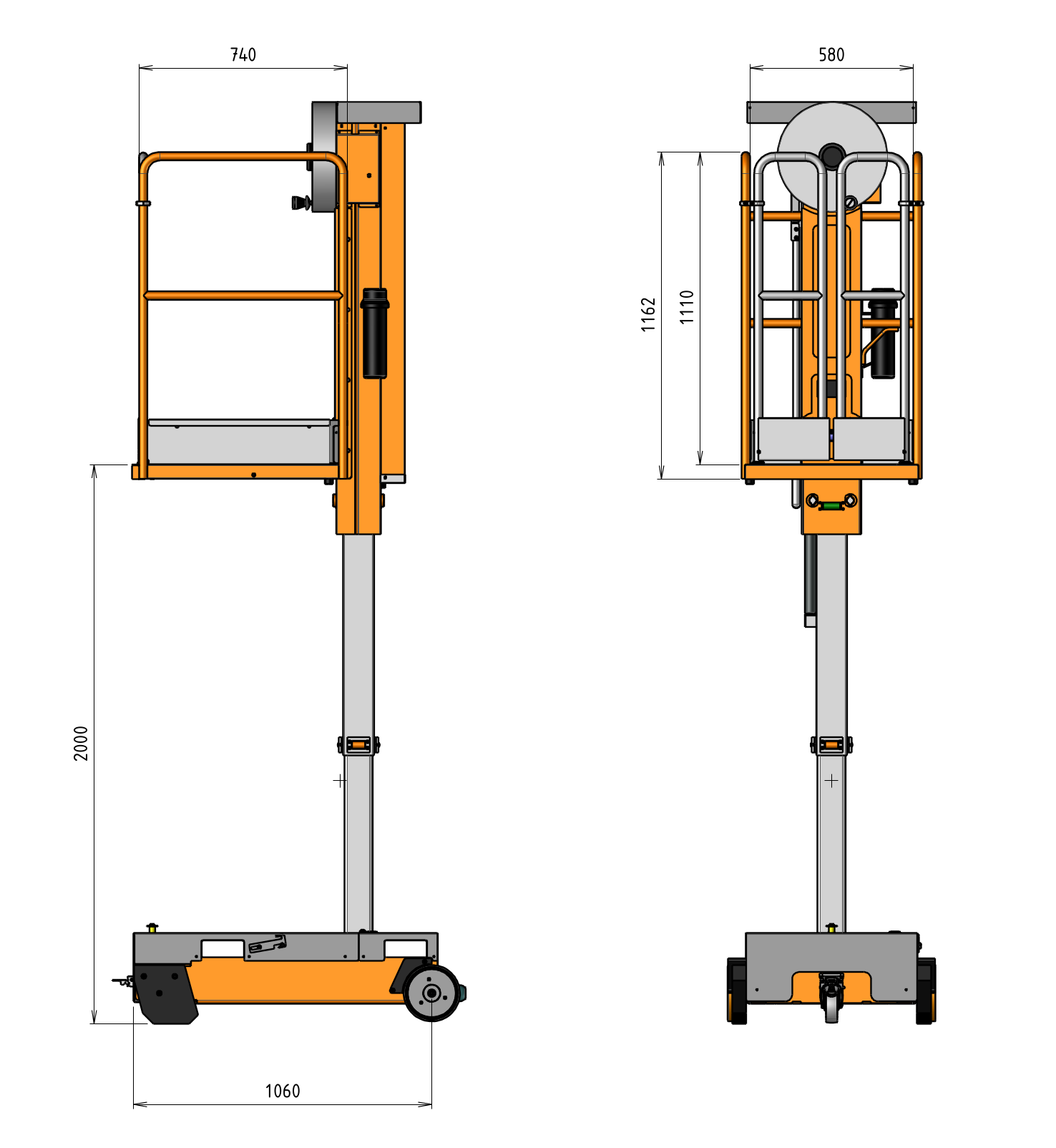

- TECHNICAL SPECS:
- Max Working Height: 4.00 m
- Max Platform Height: 2.00 m
- Work Platform: 740 mm x 645 mm
- Overall Width: 735 mm
- Overall Lenght: 1180 mm
- Stowed Height: 1670 mm
- Platform Capacity SWL: 125 kg. (1 person + tools)
- Allowable Cant: 0°- Internal Use
- Max. Wind Speed: 0km/h- Internal Use
- Max. Force To Be Exterted On The Handle: -5 daN
- Weight: 275 kg
SAFETY
Your safety is our priority. The AXOLIFT single-seat vertical platforms are the right solution for the safety of workers according to the new standards for operations in heights up to 5 meters.
ECO-FRIENDLY
Whether you choose a column lift with the simple mechanical solution or with the battery, all AXOLIFT products are zero emissions suitable for use both indoors and outdoors.
APPLICATIONS
Ordinary and extraordinary maintenance in the workplace such as factories, workshops, laboratories, offices and shops. General renovation operations such as cleaning, painting, setting up large rooms.
INTERNAL PRODUCTION
The AXOLIFT brand platforms are manufactured internally at the production site of Gromet Srl – owner of the brand – located in Italy.
